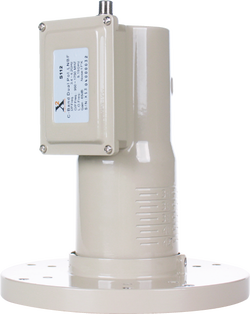

C-BAND
|
 |
 |
|
Input RF Frequency:
Output IF Frequency: Noise Figure: F/D Ratio (F/D): Input Reflector TypePrime Focus Cross Pol.lsolation: Conversion Gain: Gain Variation: Gain Flatness: Image Rejection: Output Frequency Range: L.O. Frequency: L.O. Frequency Stability: L.O. Phase Noise: D.C. Current Consumption: Operating Temperature: |
3.7~4.2 GHz
950~1450 MHz 0.7 (Tpy) 1.3 (Max) 0.28~042 (Adjustable) 20dB (Type) 62dB (typ) 55dB (Min) ±0.5dB / 27MHz ±4dB / (500MHz) 45dB (Min) 950~1450MHz 5.15GHz ±1.0 MHz @ 25°C ±2.5MHz @-40°C~+60°C -60dBC/Hz (1 KHz Offset) 150mA (max) -40°C~+60°C |
