FREE TO AIR
|
 |
 |
 |
|
General information
- Free to Air , Auto Scan/TP Scan/ Blind Scan - High Speed searching program - Receiving Standard Definition Satellite TV Channels and Radio channels - Number of channels: MAX 5000 memory store - EPG: up to 7-days based on SI information Physical Specification - Teletext supported, Support Favorites Group - Energy saving, Standby mode less than 1W - Multi-Languages Support, PAL & NTSC Auto conversion - Software update over RS-232 Serial Port Satellite Front-End - Modulation: Fully Compliant with DVB-S (MPEG2) - Input connector: F-connector LNB IN (KU/C BAND) - Frequency range: 950-2150 MHz - Symbol rate range: 2-45 Mbps - Input level: - 25 to - 65 dBm - LNB voltage: 13/18 V max 400 mA - Tone control: 22 KHZ - LNB Control: DiSEqC 1.0/1.2 - KU/C Band Supported Video Decoding & Audio Decoding - Audio Channel: Mute, Left, Right and Stereo, Joint Stereo - Audio Decoding: MPEG-1 & MPEG-2 layer I and II - Video Resolution: Standard Definition |

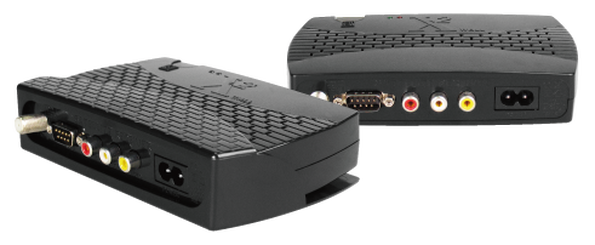

Rear panel Interfaces Input connector
- Satellite IF Input : F-type (LNB IN) - 2 x Audio L/R (RCA), - 1 x Video Signal (RCA) - 1 x RS-232 (9-pin D-sub male) - 1 x Power Cord input port Front & Upper panel Interfaces - 1 Standby LED Indicator - 1 Signal LED Indicator - IR Sensor Power Requirements - Mains input voltage: 100V~240v - Mains input frequency: 50 / 60 Hz - Power consumption: Typ.: 12V 1.2A Physical Specification - Operating temperature: +5°C to +45°C - Storage temperature: -20°C to +65°C |
